Diodes Incorporated MJD Automotive Medium Power Transistors

Diodes Inc. MJD Automotive Medium Power Transistors are bipolar transistors that are AEC-Q101 qualified, PPAP capable, and manufactured in IATF16949 certified facilities. Each device has a collector-emitter breakdown voltage of 50V or 100V (minimum). The Diodes Inc. MJD Automotive Medium Power Transistors come in a TO-252 (DPAK) package and are ideal for power switching or amplification applications.

Features

  • BVCEO > 100V
  • IC = Up to 6A continuous collector current
  • ICM = Up to 10A peak pulse current
  • Lead-free finish; RoHS compliant
  • Halogen and antimony-free Green device

Mechanical Data

  • TO-252 (DPAK) package
  • Package material is molded plastic, Green molding compound with a UL flammability classification rating of 94V-0
  • Moisture sensitivity of Level 1 per J-STD-020
  • Terminals are matte tin-plated leads finish, solderable per MIL-STD-202, Method 208
  • 0.34 grams (approximate) weight

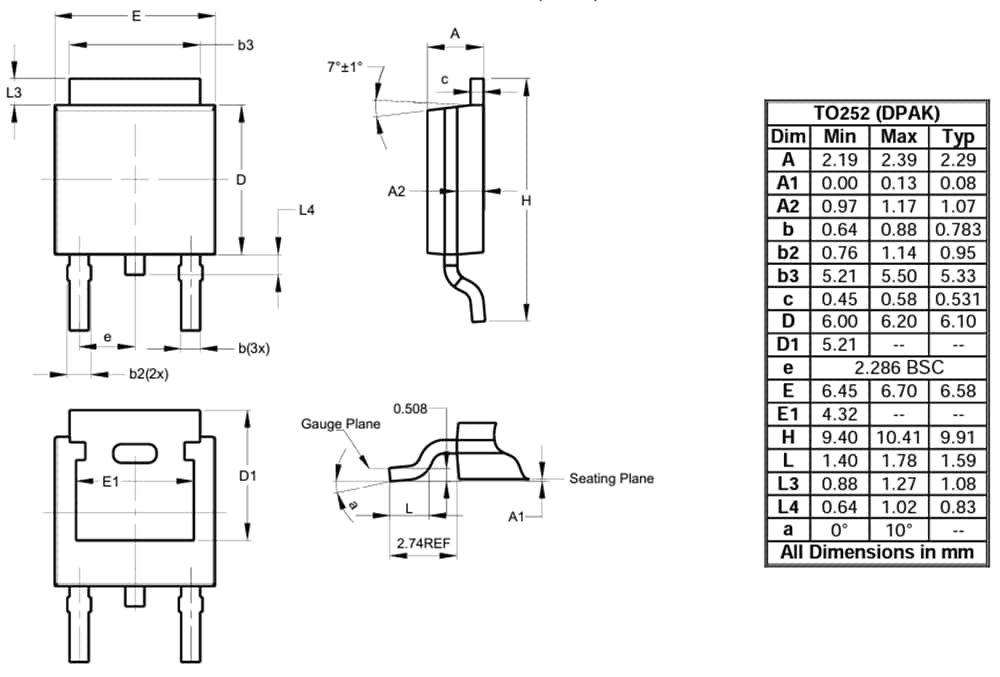

Package Outline Dimensions

Mechanical Drawing - Diodes Incorporated MJD Automotive Medium Power Transistors
