RECOM Power R-78E DC/DC Converter Switching Regulator Modules
RECOM Power R-78E DC/DC Converter Switching Regulator Modules are 0.5A or 1.0A, single-output DC/DC converters that provide a cost-effective option for high efficiency and accurate output voltage regulation. These modules feature an input voltage of 6VDC to 28VDC and up to 95% efficiency (no heat sink required) with an output voltage of 3.3V, 5V, 9V, 12V, or 15V. RECOM R-78E modules are housed in a compact 11.6mm x 8.5mm x 10.4mm, SIP3, TO-220 compatible package.
Features
- Cost-effective switching regulators
- Up to 95% efficiency
- Wide input range
- Short-circuit protection
- Accurate output voltage regulation
- SIP3 package, 11.6mm x 8.5mm x 10.4mm
- Pin compatible with 78 series regulators
- 3.3V or 5V/500mA output
- IEC/EN60950-1 + AM2 certified
- RoHS and REACH compliant
- 3-year warranty
Specifications
- 6VDC to 28VDC input voltage range
- 3.3VDC to 15VDC output voltage range
- 0.5A or 1.0A output current options
- 11MF to 220MF maximum capacitive load range
- 1.5mA quiescent current
- 330kHz or 570kHz internal operating frequency options
- -40°C to +85°C operating temperature range
Related Products
RECOM Power Electric Vehicle Charging Application Solutions
Include low-power AC/DC modules, DC/DC converters, and switching regulators.
RECOM Power Internet of Things (IoT) Products
Energy-efficient AC/DC and DC/DC converters ideal for Industry 4.0 and IoT applications.
RECOM Power Highly Efficient Switching Regulators
Cost-effective, non-isolated modular, tiny drop-in solutions with accurate output voltages.

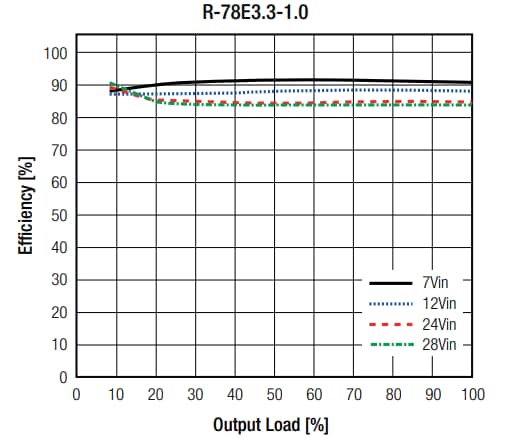

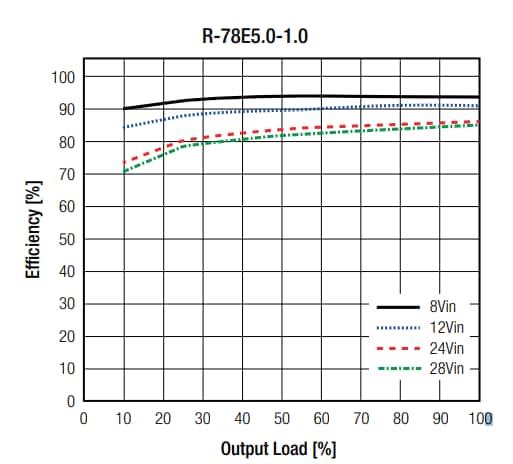

Performance Graphs
