Texas Instruments DRV81646 Four-Channel Low-Side Switch Drivers
Texas Instruments DRV81646 Four-Channel Low-Side Switch Drivers operate from 4.5V to 65V and support a wide range of load currents. These devices integrate four low-side switches with an RDS(ON) of 140mΩ, each with a freewheeling diode to the VCLAMP pin. This feature allows the user to either recirculate current or connect an external TVS for inductive load turn-off.
The Texas Instruments DRV81646 can be controlled through a hardware GPIO interface. Each channel features individual overtemperature protection and an analog current limit adjustable with an external resistor on the ILIM pin. There is an optional cut-off delay (COD) configuration that limits the duration of a current-limiting condition on the respective channel, helping to prevent damage to the device or the load. The output slew rates are configurable by setting a resistor on the RSLEW/CNTL pin, providing further flexibility in controlling the output switches. The device has an INRUSH mode, boosting the current limit threshold for capacitive loads.
The DRV81646 provides a fault output pin (nFAULT) to indicate fault conditions, and per-channel fault status can be monitored in SPI mode. This feature allows the user to quickly identify and respond to any faults that occur.
Features
- Four-channel integrated low-side switches
- 140mΩ RDS(ON) at 25°C
- Operating supply voltage range: 4.5V to 65V (70V absolute maximum)
- Selectable current limit from 0.5A up to 4A per channel
- Fast PWM switching up to 500kHz
- Flexible interface options
- Hardware interface with an independent channel PWM input
- SPI enables a reduction in GPIO and isolation overhead for high channel count designs
- Integrated catch diodes for flexible decay modes with optional external TVS/Zener diode as alternate current path on switch turnoff
- Slew rate configurable (100ns – 1500ns) enables both slow/fast switching applications
- Diagnostic feedback
- MCU fault interrupt signal (nFAULT)
- Per-channel fault report available through SPI
- Protection Features
- User-settable current limit
- Independent overtemperature and overcurrent protection for each channel
- Configurable overcurrent cut-off delay (COD) 0.5ms-2ms
Applications
- PLC
- Distributed I/O
- Field devices
- General relay and solenoid drive
- Textile machines

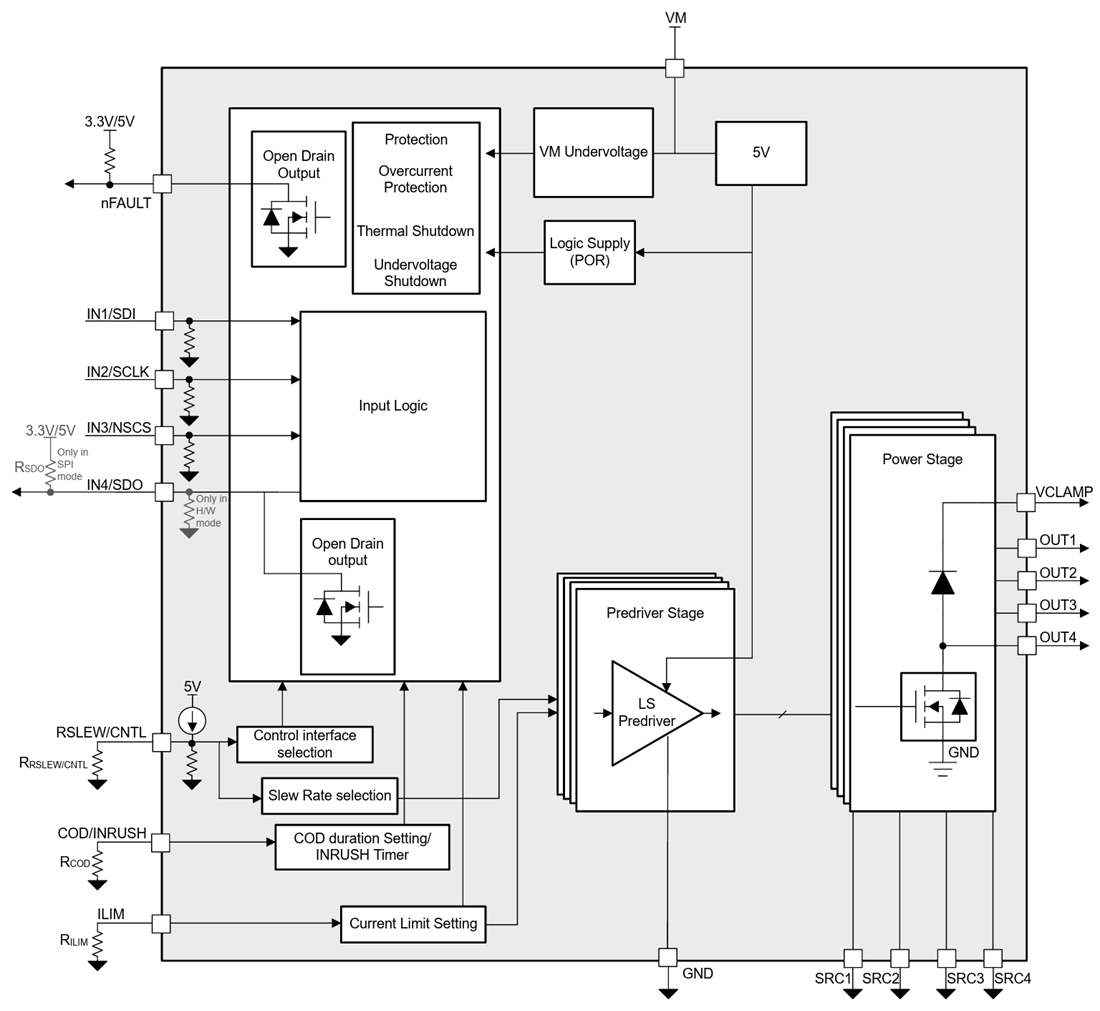

Functional Block Diagram
