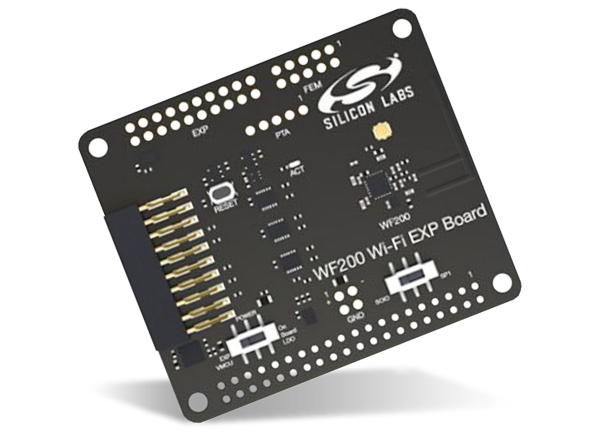

Silicon Labs WF200 Wi-Fi® Expansion Kits

Silicon Labs WF200 Wi-Fi® Expansion Kits explore the WF200 Wi-Fi Transceivers' capabilities. The kit includes a built-in Raspberry Pi Connector to get started immediately with Linux development. An EXP Connector enables development on Silicon Labs' MCUs and Wireless MCUs. Open source drivers are available for a variety of Linux and RTOS platforms. The kits contain onboard antennas, and a micro u.FL connector for external antennas. The SLEXP8022B contains the SLEXP8022A and also includes a Raspberry Pi.

The Silabs WF200 Wi-Fi Expansion Kit connects to either a Silicon Labs EFM32 MCU starter kit (STK), a Silicon Labs EFR32 wireless starter kit (WSTK) or a Raspberry Pi equipped with the 40-pin Raspberry Pi hardware-attached-on-top (HAT) connector.

Features

  • EXP connector for interfacing silicon
  • Labs starter kits
  • Selectable SPI or SDIO host interface
  • Allows board detection and identification
  • Raspberry Pi compatible HAT
  • 40-pin header
  • HAT EEPROM for identification
{"IsParent":false,"RelatedContentTitle":"Associated Products","ModuleId":43025,"MarketingIds":["189412323"]}
{"IsParent":false,"RelatedContentTitle":"Associated Kits","ModuleId":152162,"MarketingIds":["161151723"]}

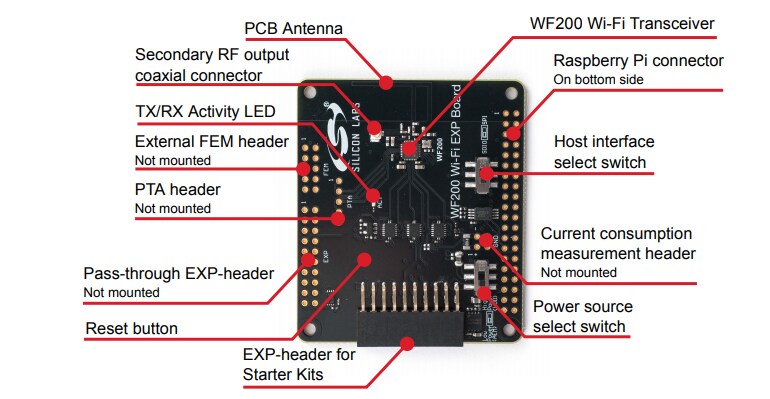

Layout

Silicon Labs WF200 Wi-Fi® Expansion Kits

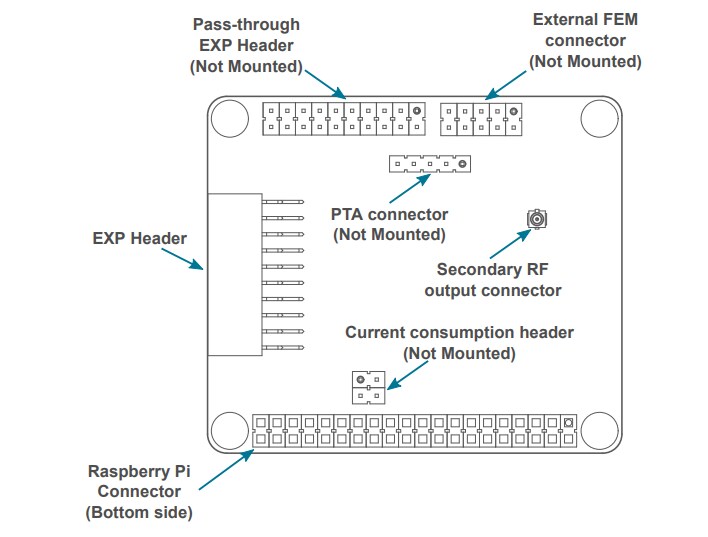

Connector Layout

Silicon Labs WF200 Wi-Fi® Expansion Kits
