Texas Instruments DAC81416EVM DAC Evaluation Module (EVM)

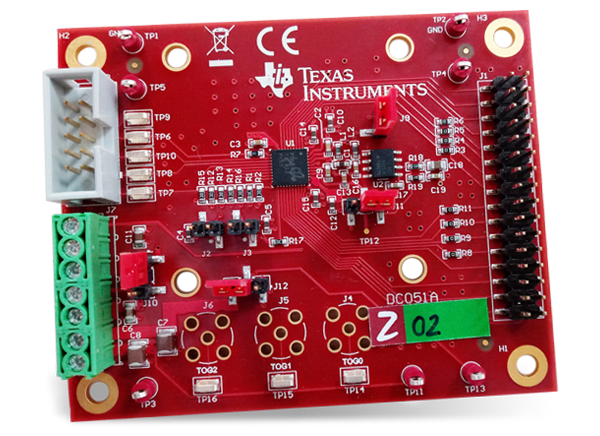

Texas Instruments DAC81416EVM DAC Evaluation Module (EVM) is an easy-to-use platform for evaluating the functionality and performance of the DAC81416. The DAC81416 is a 16-channel, buffered, high-voltage output, digital-to-analog converter (DAC) in 16-bit resolution with an integrated 2.5V internal reference. The device provides a bipolar output voltage of up to ±20V and unipolar of up to 40V. The DAC81416EVM provides the serial peripheral bus (SPI) programming interface via a PC-based graphical user interface (GUI).
Features
- Integral nonlinearity (INL) of ±1LSB max at ±10V output, ±2LSB max at ±20V output
- Integrated 2.5V precision internal reference
- Output ranges of ±2.5V, ±5V, ±10V, ±20V, 0V to 5V, 0V to 10V, 0V to 20V, or 0V to 40V
- Three dedicated A-B toggle pins
